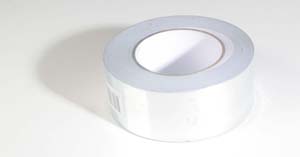

Adhesive Aluminium foil ELAA
FIXING HEATING TAPE
Aluminum tape, coated with solvent acrylic adhesive mass and protected by a glossy insert
Produced chemically neutral and non-aggressive on all types of surface
STANDARD ALUMINIUM TAPE
- Width (mm) : 50mm, 75mm and 100mm
- Length (ml) : 50 ml par rouleau
- Central chuck (mm) : 76.1 mm (carton)
- Weight (Kg)
- 50 mm : 0.590 Kg
- 75mm : 0.890 Kg
- 100 mm : 1.04 Kg
USE:
- Fix the heating cable on a clean and dry pipes
- Use in distribution of calories, or surface of plastic pipes, PVC, polyethylene, to increase the exchange surfaces
- Area of implementation: tracing electrical sealing pipes, thermal insulation covering on-insulator
- Fixing heating cables on clean and dry outer walls
- Use as a caloric spreader, on pipes or plastic surface, PVC, polyethylene, to increase the exchange surfaces
- Field of application: electrical tracing, pipe sealing, insulation thermal insulation
ADVANTAGES:
- Cut on length.
- Storage on reel: length 50 ml
- Resistant to 120 ° C continuous and 180 ° C intermittent
- Available on stock
TECHNICAL DATASHEET:
- Support: Aluminum
- Thickness of the support: 40μΜ
- Nature of the adhesive: Acrylic Solvent
- Total thickness: 80μΜ, without insert
- Adhesion to T.A: 20N / 25mm steel
- Resistance to breaking: 55N / 25mm
- Fire classification according to standard: M1
STORAGE:
This product is stored in a dry, cool place away from the sun and direct sources of heat. As long as the storage conditions are respected, the product is guaranteed for 6 months from the date of delivery.
Storage temperature: -20 ° C to + 50 ° C
IMPORTANT NOTE
All claims, technical information, and product recommendations are based on tests performed in our laboratories and our experience in electrical heat tracing applications, which we consider
Download the adhesif aluminium datasheet
